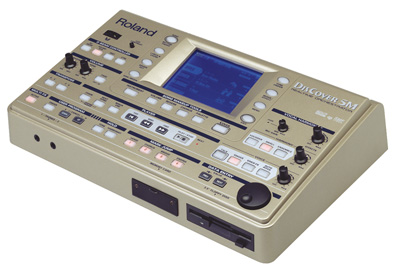

Roland DISCOVER 5M Realtime Orchestrator
Complete Control Over Standard MIDI Files!
Thanks to its icon-based interface, easy song management system and unique
"Cover" function, the DisCover 5M Realtime Orchestrator gives musicians the
ability to find, play and re-arrange SMFs on the fly. A powerful Vocal Harmonist
and lyric display function make this innovative module ideal for vocalists and
karaoke applications as well.
features-
World's first sound module capable of realtime SMF manipulation
Professional Vocal Harmonist with revolutionary Singer Key function
Easy operation via large, graphic LCD and intuitive touchscreen interface
Manage large song archives via Song Finder and supplied 64MB SmartMedia card
Video output for displaying chords and lyrics on a TV monitor
A Live Performer' s Dream
With 72 preset Covers (30 for instruments, 18 for drums, 24 for bass), you can
instantly change the orchestration of songs on the icon-based touchscreen, or
edit detailed song parameters using the Song Makeup Tools. A powerful Vocal
Harmonist lets you add realtime harmonies and effects using four modes: Talk,
Voice-FX, Auto Pitch and Singer. It can also transpose the song to fit your
vocal range automatically.
Find Songs Fast
If you have a large SMF library, you'll love the DisCover 5M's Song Finder,
which makes locating songs easy using classifications like genre, author and
title. And they always load fast - thanks to convenient SmartMedia storage and
an innovative Next Song Reserve function that keeps your next song "on deck." A
helpful Song Chord Extractor displays chord changes onscreen with lyrics, making
it easy to follow along as you play and improvise.
Tell Me More About The Roland Discover 5M
Dimensions
Width: 445 mm (17-9/16 inches) Height: 114 mm (4-1/2 inches)
Depth: 303 mm (11-15/16 inches)
|
Sound
Generator
|
PCM Wavetable 64 voices 19 parts 1,422 tones 44 drum kits |
|
Compatibility
|
GM2/GS |
|
Display
|
1/4 VGA Touch Screen with backlight |
|
Realtime
Song Player
|
with programmable Mark/Jump |
|
Song
Makeup Tools
|
2 modes: Manual and Cover |
|
User
Programs
|
128 |
|
Vocal
Harmonist
|
4 modes (Talk, Voice-FX, Auto Pitch, Singer) and Vocoder separate effects for Voices and harmonies |
|
Effects
|
Reverb: 8 types Chorus: 8 types Multi-FX: 47 types |
|
Data
Storage
|
Smart Media (up to 128MB) FDD |
|
Tone
Finder
|
34 families Song/Rhythm Finder: up to 99,000 songs User Program Finder |
|
Realtime Parts
|
Upper, Lower, M Drums |
|
Singer
Key
|
Automatic Song transposition |
|
Others
|
Programmable Fade OUT/IN Programmable Minus One Song Chord Extractor Next Song Reserve Lyrics and Chords on display Text Import/Export User Program Hold |
|
MIDI
|
In, Out, Thru |
|
Output
|
(L/mono R) Harmonist Output(L,R) Phones x 2 Video Output (Composite) Pedals: Footswitch (programmable) Foot Pedal (expression) |
|
Input
|
Microphone |
|
Power
Supply
|
100V / 117V / 230V / 230 V |
|
Supplied Accessories
|
64 MB Smart media with song data |
|
Interactive DEMO
|
Cover, Tones, Harmonizer |
|
Tone
Finder
|
34 families (Categories) |
|
Song/Rhythm Finder
|
Yes, up to 99,000 songs, managed via database |
|
Realtime Parts
|
Upper, Lower, M Drums |
|
Octave
|
From -4 to +4, separate for Upper / Lower / Mdrums |
|
Singer
Key
|
Automatic Song transposition(-6 ~ +5) |
|
Others
|
Programmable Fade OUT/IN, Next Song Reserve |
|
MIDI
|
In, Out, Thru |
|
Output
|
(L/monoﾐRight), Phones x 2 |
|
Pedals
|
Footswitch(programmable) Foot Pedal (expression) |
|
Input
|
Harmonizer Microphone |
|
Harmonizer Output
|
Separate (L,R) or Mixed to Main Output |
|
Video
Output
|
Composite, Independent Lyrics transmission |
|
Voltage
|
100V / 117V / 230V / 240V |
|
Power
consumption
|
TBD |
